Application support
Engineering questions rarely arrive as clean catalog searches. A request may begin with a failed unit, an incomplete drawing, a changed supply voltage or a panel redesign. Our service path records what is known, identifies the missing electrical and mechanical details, and keeps assumptions visible through quotation and delivery.
We organize source voltage, secondary load, kVA, frequency, phase, temperature rise, insulation class, enclosure and mounting requirements. The review distinguishes mandatory criteria from preferences so the quote remains comparable.
An existing part number is compared across voltage ratio, taps, impedance where available, dimensions, terminal arrangement and environmental duty. A proposed alternative is not treated as drop-in until installation interfaces are checked.
Wiring diagrams, dimensional drawings and series literature are routed by exact catalog number and revision context. This reduces the risk of using a family-level document for a product with a different winding or enclosure configuration.
Commercial follow-up keeps requested quantity, destination, required date and document status linked to the technical inquiry. Availability discussions state what is confirmed and what still depends on production or distributor inventory.
Retrofit example

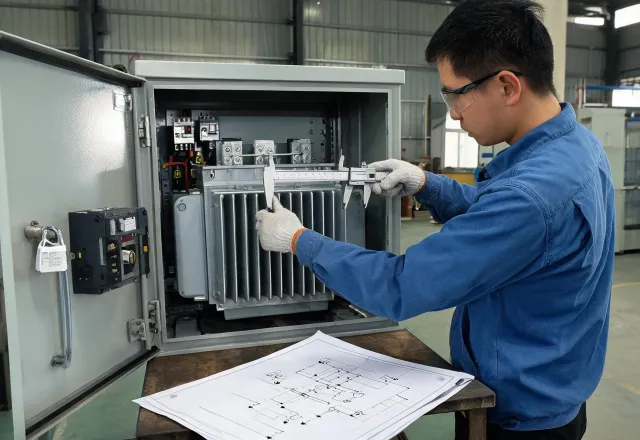

A maintenance team can provide the failed unit nameplate, primary and secondary conductors, mounting footprint and enclosure clearance. The review then separates electrical equivalence from mechanical fit. If the original tap arrangement or temperature-rise data is unavailable, the response flags that limitation instead of presenting an unqualified replacement.
The outcome is a documented comparison package: confirmed voltage and phase, proposed kVA, known dimensions, terminal orientation, open installation checks and the drawings required before release.
Panel build example

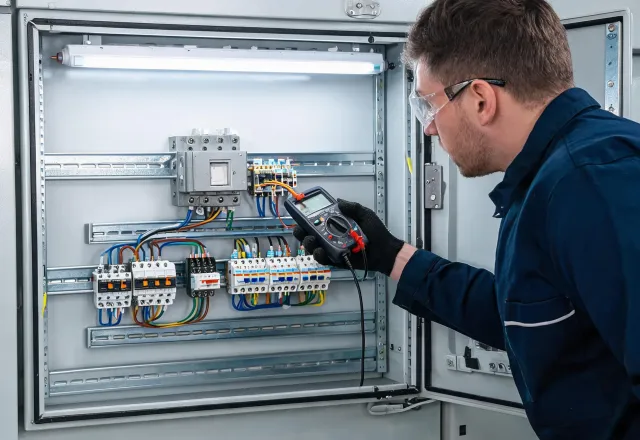

For a new control panel, the load list may include contactor coils, PLC power supplies, relays and service receptacles. Selection records continuous VA, inrush and protective-device coordination assumptions. A conservative margin may increase size and cost, while high utilization can reduce thermal headroom; the choice should follow the enclosure ambient and duty cycle.
Drawings and catalog references are then attached to the same inquiry record used for quotation, making review comments easier to trace across engineering, purchasing and production.
Include the installed catalog number, source and load voltages, phase, frequency, kVA or connected load, enclosure conditions, quantity and required date. If a value is unknown, label it unknown; engineering can identify the next measurement or document needed.
